When talking about the primary advantages of using drones for inspections, cutting costs is always at the top of the discussion. However, do these savings apply universally across industries, or just to specific sectors? And precisely how do drones assist businesses in reducing inspection expenses?
The response to the first question is that the cost-saving benefits of using drones for inspections are applicable to nearly every situation where industrial inspections are necessary. Whether the inspection occurs indoors, such as within a boiler or pressure vessel, or outdoors, like with power lines or cell phone towers, drones can gather visual data more swiftly and effortlessly than humans. This enhanced speed and ease are key factors in lowering the overall cost of inspections, regardless of their nature.
Regarding the second question—how drones help businesses decrease inspection costs—the following list delves into various ways inspection drones are aiding companies in saving money today.

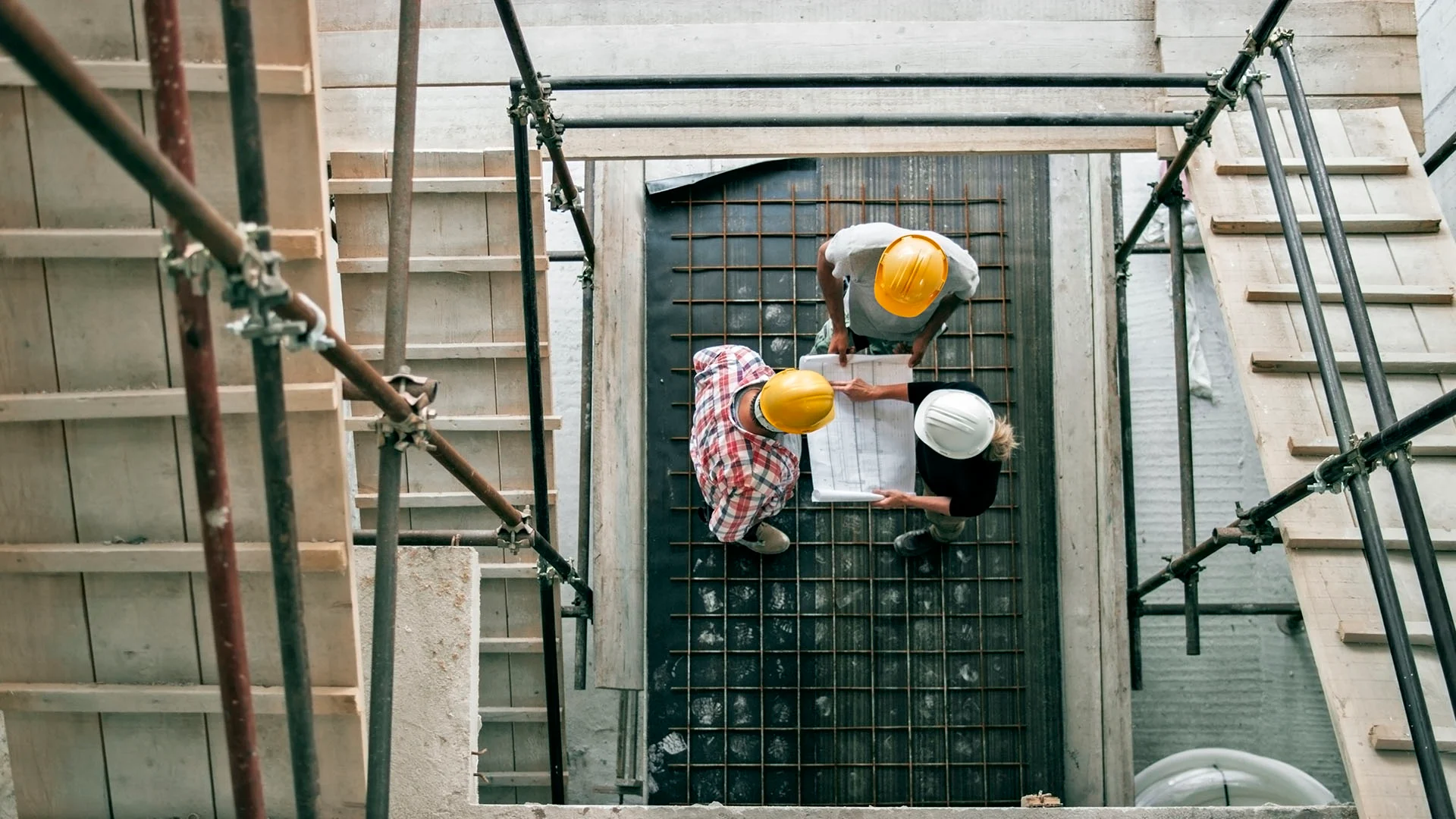

### 1. Reduced Demand for Scaffolding
One major area where drones bring significant savings is in diminishing—or even eliminating—the requirement for scaffolding. Depending on the scale of the inspection, firms can save tens or even hundreds of thousands of dollars on a single inspection by leveraging drones instead of scaffolding.
The reasoning behind this is straightforward: scaffolding is a costly, one-time expense for a temporary structure designed solely to provide inspectors with a platform to collect visual data inside an asset. Drones can achieve the same goal remotely, drastically reducing the need for manual data collection and, consequently, the need for scaffolding.
The expenses associated with scaffolding stem from three primary sources:
- Costs of scaffolding materials
- Labor required to erect and dismantle scaffolding
- Extended downtime for assets while scaffolding is being installed or removed
Even when scaffolding is still necessary for supplementary data collection or maintenance, using a drone first can help pinpoint where scaffolding should be built, minimizing both material usage and total time spent.
#### How Much Can You Save?
Below are two case studies illustrating the savings companies have achieved by using drones to eliminate the need for scaffolding.
**Oil & Gas – $2 Million Saved in an Oil Cargo Tank Inspection with the Elios 2**
Marine Inspection Services, Ltd assisted an oil tanker manager in realizing substantial savings by employing the Elios 2 for a cargo tank inspection.
- Materials and labor savings: $400,000
- Reduced downtime savings: $1.6 Million
**Total Savings: $2 Million**
*Read the full case study.*
---
**Power Generation – $320,000 Saved in a Boiler Inspection with the Elios 1**
Pampa Energia, Argentina’s largest energy provider, achieved significant savings from a single inspection flight using the Elios 1.
- Materials and labor savings: $30,000
- Reduced downtime savings: $290,000
**Total Savings: $320,000**
*Read the full case study.*
---
### 2. Reduced Downtimes
Another significant contributor to savings when using drones for inspections is the substantial reduction in asset downtime.
One of the primary ways drones minimize downtime is by decreasing the need for scaffolding, which can take considerable time to set up and dismantle. Additionally, drones are faster at collecting visual data than humans, allowing for quicker inspections and further reducing downtime.
#### How Much Can You Save?
From the case studies mentioned earlier, it's clear that downtime reductions can result in savings of hundreds of thousands or even millions of dollars.
In the first case study, an oil tanker manager saved $1.6 million by using an indoor drone to inspect a cargo tank.
Here's how those savings were achieved:
- Daily downtime cost: $200,000
- Extra downtime due to scaffolding setup/takedown: 8 days
**Total Savings: $1.6 million**
---
### 3. Reduced Work Hours
Inspection drones can also significantly cut down the total number of work hours required for inspections, driving down labor costs.
This reduction mainly comes from eliminating the need for workers to construct and dismantle scaffolding. Additionally, drones can collect visual data more quickly than humans, reducing the overall time inspectors spend on-site gathering data.
#### How Much Faster is a Drone Than a Person?
Here’s a case study highlighting the reduction in work hours achieved by using inspection drones.
**Power Generation – 470 Hours of Work Saved in a Scrubber Inspection at a Power Plant**
The Tennessee Valley Authority (TVA) utilized the Elios 2 to inspect a scrubber at one of its power plants, reducing the inspection time by 98%.
- Manual inspection work hours: 280 hours
- Drone inspection work hours: 10 hours
**Total Work Reduction: 270 hours (98% overall reduction)**
*Read the full case study.*
---
### 4. Reduced Insurance Costs
Using drones for indoor inspections significantly lowers risks for inspectors and site workers by reducing the need for confined space entry, rope access, or working at dangerous heights on scaffolding.
By minimizing these risks, companies can lower their liability insurance, yielding additional savings.
---
### 5. Reduced Need for Health & Safety Equipment
In many inspection scenarios, inspectors must wear health and safety gear while conducting inspections. By replacing manual data collection with remote drone operations, companies can reduce the need for this equipment, offering yet another avenue for cost savings.
---
### 6. Increased Frequency of Inspections
Since drones make inspections more affordable, they enable companies to conduct them more frequently.
Performing inspections more regularly allows companies to detect asset defects earlier, enabling them to address potential issues before they worsen. This early detection extends the lifespan of assets and leads to significant long-term savings.
Moreover, increasing inspection frequency benefits the environment. A study by Boiler Room Consulting found that using drones to boost the number of annual inspections could potentially reduce CO2 emissions by up to 649 metric tons per year.
---
